本文以费用报销为业务场景,演示如何通过 API 完成从创建空间、配置类别、上传文件、获取抽取结果到智能审核的完整流程。
如果您刚刚接触 DocFlow,建议先在 Web 页面 体验一下产品的基本功能,再阅读本文。
01 场景说明
在费用报销业务中,财务人员每天需要处理大量不同类型的报销单据,例如:- 报销申请单(XLS 格式):记录申请人、出差目的、费用明细等信息
- 酒店水单(图片):记录入住日期、离店日期及消费明细
- 支付记录(PDF):记录交易流水号、交易金额、收付款方信息

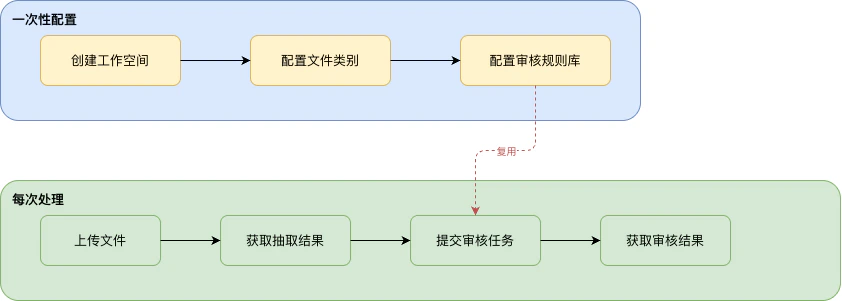

02 业务流程

工作空间、文件类别和审核规则库只需配置一次,后续可持续复用——直接上传新的待处理文件并创建新的审核任务即可。本示例为演示完整流程,将配置步骤和处理步骤放在同一段代码中运行。
03 先决条件
- 登录 TextIn 控制台,获取
x-ti-app-id和x-ti-secret-code - 下载示例样本文件,或使用自己的报销单据
04 类别与字段配置

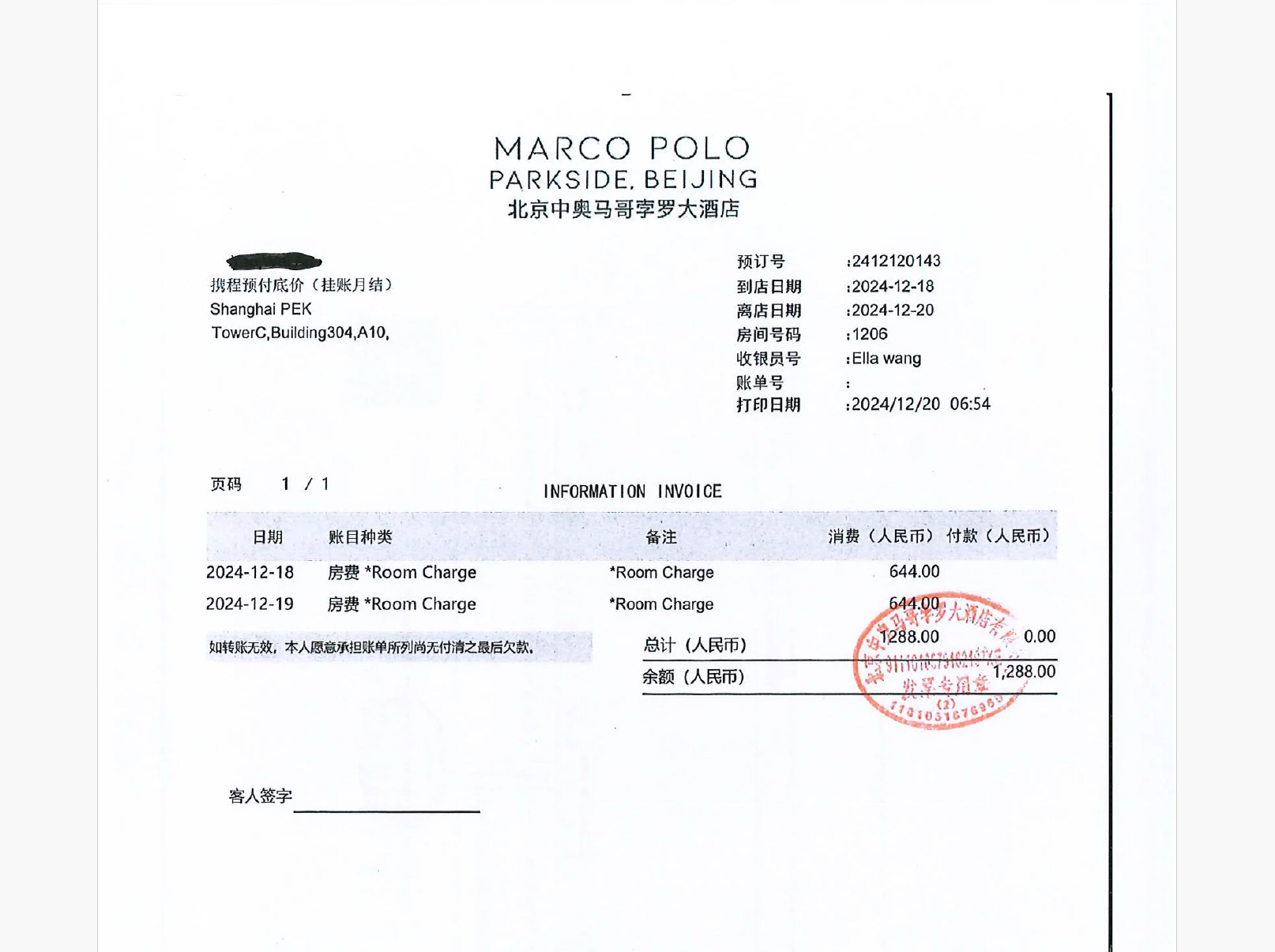

本示例配置三个文件类别,字段设计如下:酒店水单(样本:sample_hotel_receipt.png)
酒店水单(样本:sample_hotel_receipt.png)
酒店水单是住宿消费的凭证,通常包含入住/离店日期等全局信息,以及按天计费的消费明细表格。字段配置同时使用基本信息字段(全局信息)和表格字段(逐行消费记录),以完整提取单据中的结构化数据:

| 字段名 | 类型 |
|---|---|
| 入住日期 | 基本信息字段 |
| 离店日期 | 基本信息字段 |
| 总金额 | 基本信息字段 |
| 日期 | 表格字段 |
| 费用类型 | 表格字段 |
| 金额 | 表格字段 |
| 备注 | 表格字段 |

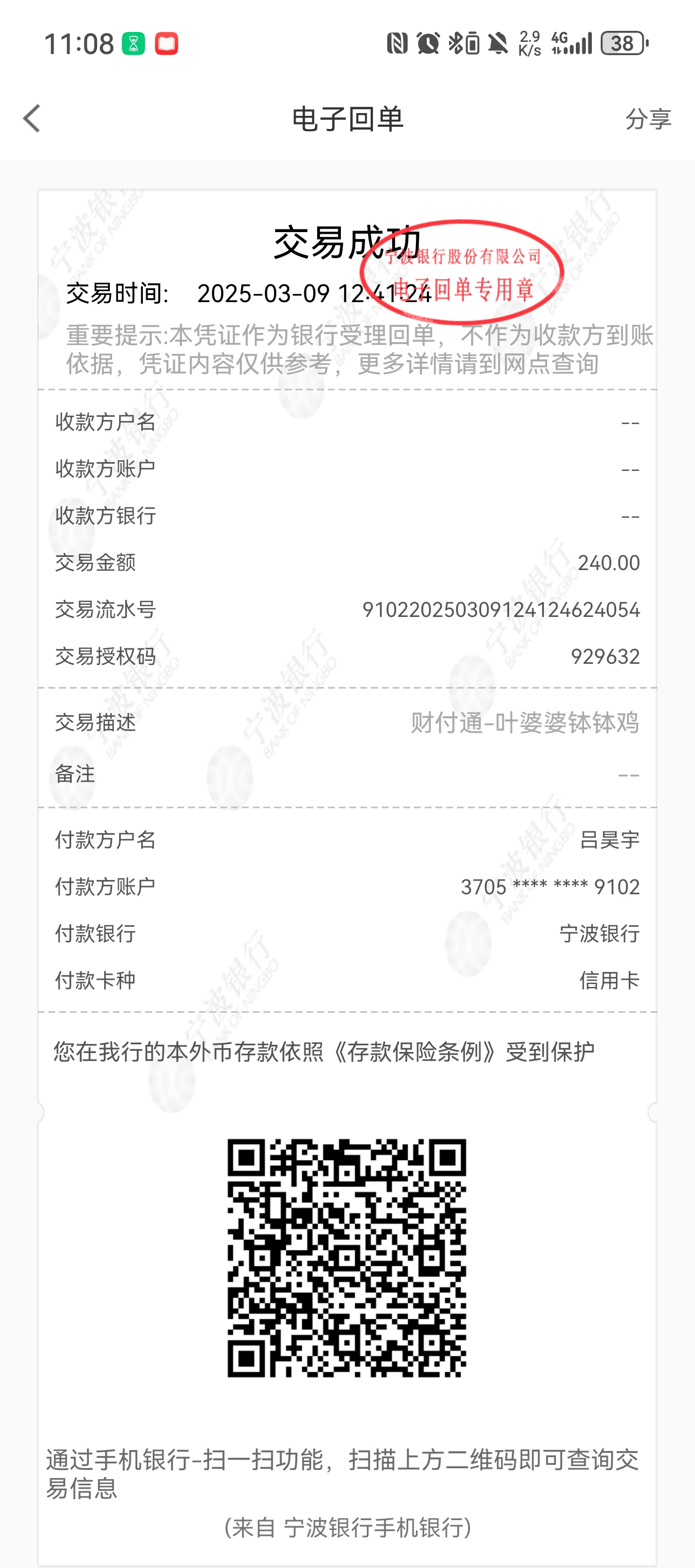

支付记录(样本:sample_payment_record.pdf)
支付记录(样本:sample_payment_record.pdf)
支付记录是银行或支付机构出具的电子回单,包含交易流水号、交易双方及金额等详情。通过字段抽取,可快速核验报销金额和收付款方是否与申请单一致:

| 字段名 | 类型 |
|---|---|
| 交易流水号 | 基本信息字段 |
| 交易授权码 | 基本信息字段 |
| 付款卡种 | 基本信息字段 |
| 收款方户名 | 基本信息字段 |
| 付款方户名 | 基本信息字段 |
| 交易时间 | 基本信息字段 |
| 备注 | 基本信息字段 |
| 收款方账户 | 基本信息字段 |
| 收款方银行 | 基本信息字段 |
| 交易金额 | 基本信息字段 |
| 交易描述 | 基本信息字段 |
| 付款银行 | 基本信息字段 |
| 币种 | 基本信息字段 |
| 交易账号/支付方式 | 基本信息字段 |
报销申请单(样本:sample_expense_form.xls)
报销申请单(样本:sample_expense_form.xls)
报销申请单是差旅费用报销的主单据,以 Excel 表格形式记录申请人信息、出差行程及各项费用明细。通过字段抽取,系统可自动录入申请人、金额、税率等关键数据,避免手工填表出错:
| 字段名 | 类型 |
|---|---|
| 申请人 | 基本信息字段 |
| 出差目的 | 基本信息字段 |
| 报销期间 | 基本信息字段 |
| 目的地 | 基本信息字段 |
| 费用发生日期 | 基本信息字段 |
| 费用项目 | 基本信息字段 |
| 差旅费金额 | 基本信息字段 |
| 税率 | 基本信息字段 |
| 冲借款金额 | 基本信息字段 |
| 申请付款金额 | 基本信息字段 |
| 备注 | 基本信息字段 |
| 税额 | 基本信息字段 |
05 审核规则配置
本示例的审核规则库包含 3 个规则组、8 条审核规则,覆盖单据内合规性检查、差旅政策匹配和跨单据交叉核验三个维度:规则组 1:报销申请单合规性检查(适用分类:报销申请单)
规则组 1:报销申请单合规性检查(适用分类:报销申请单)
| 规则名称 | 风险等级 | 审核逻辑 |
|---|---|---|
| 行报销金额校验 | ● 高风险 | 行申请付款金额 ≤ 行差旅费金额(含税)- 行冲借款金额,冲借款金额为空时视为 0 |
| 报销总金额校验 | ● 高风险 | 申请付款总金额 ≤ Σ 行申请付款金额 |
| 报销期间与费用日期匹配 | ● 中风险 | ”费用发生日期”应在”报销期间”所覆盖的日期范围内 |
| 必填字段完整性校验 | ● 高风险 | ”申请人”、“费用发生日期”、“费用项目”、“申请付款金额”均不为空 |
规则组 2:差旅费用政策匹配审核(适用分类:酒店水单)
规则组 2:差旅费用政策匹配审核(适用分类:酒店水单)
| 规则名称 | 风险等级 | 审核逻辑 |
|---|---|---|
| 城市差标匹配 | ● 中风险 | 酒店住宿单价 ≤ 目的地城市差旅标准:一线城市(北京/上海/广州/深圳)≤ 800 元/晚,省会及计划单列市 ≤ 500 元/晚,其他城市 ≤ 300 元/晚 |
| 酒店明细合计金额校验 | ● 中风险 | 所有明细行”金额”合计 = “总金额” |
规则组 3:跨文档交叉审核(适用分类:报销申请单 + 酒店水单 + 支付记录)
规则组 3:跨文档交叉审核(适用分类:报销申请单 + 酒店水单 + 支付记录)
| 规则名称 | 风险等级 | 审核逻辑 |
|---|---|---|
| 跨文档金额匹配 | ● 高风险 | 报销申请单差旅费金额 = 酒店水单总金额 = 支付记录交易金额,允许 ±0.1 元误差 |
| 付款人身份与申请人一致性 | ● 中风险 | 支付记录”付款方户名”与报销申请单”申请人”为同一人 |
跨文档规则的
category_ids 包含多个分类 ID,只有当审核任务覆盖所有关联分类时,该规则才会被触发执行。06 代码结构说明
示例代码将完整的七步流程放在一起运行,便于理解端到端的调用链路。在实际生产中,步骤 1、2、5(创建工作空间、配置文件类别、配置审核规则库)只需执行一次;后续处理新单据时,只需重复步骤 3、4、6、7(上传文件 → 获取抽取结果 → 提交审核任务 → 获取审核结果),直接复用已有的工作空间、类别和规则库即可。 示例代码中的函数分为两类,理解这一点有助于对照 API 文档进行调试和扩展。两类函数
REST API 调用函数 — 每个函数直接封装一个 API 端点,函数参数与接口文档一一对应:| 函数(Python) | 方法(Java) | 对应 API 端点 | 说明 |
|---|---|---|---|
create_workspace | createWorkspace | POST /workspace/create | 创建工作空间,返回 workspace_id |
create_category | createCategory | POST /category/create | 创建文件类别并上传样本文件,返回 category_id |
batch_add_category_fields | batchAddCategoryFields | POST /category/fields/batch_add | 为已有类别追加字段(用于添加表格字段) |
upload_file | uploadFile | POST /file/upload | 异步上传文件,返回 batch_number,需轮询获取结果 |
upload_file_sync | uploadFileSync | POST /file/upload/sync | 同步上传文件,直接返回抽取结果,无需轮询 |
create_rule_repo | createRuleRepo | POST /review/rule_repo/create | 创建审核规则库,返回 repo_id |
create_rule_group | createRuleGroup | POST /review/rule_group/create | 在规则库内创建规则组,返回 group_id |
create_rule | createRule | POST /review/rule/create | 在规则组内创建审核规则,绑定适用分类 |
submit_review_task | submitReviewTask | POST /review/task/submit | 提交审核任务,返回审核 task_id |
| 函数(Python) | 方法(Java) | 作用 |
|---|---|---|
_headers | authHeaders | 构造鉴权请求头 |
_check | checkResponse | 校验响应 code,统一异常处理 |
_mime | mimeType | 根据扩展名推断 MIME 类型 |
wait_for_result | waitForResult | 循环轮询 file/fetch,等待抽取完成 |
display_result | displayResult | 格式化打印抽取结果 |
wait_for_review | waitForReview | 循环轮询 review/task/result,等待审核完成 |
display_review_result | displayReviewResult | 格式化打印审核结果 |
逐步代码说明
步骤 1:创建工作空间
步骤 1:创建工作空间
工作空间名称中加入时间戳,确保每次运行都会创建独立的新空间,避免重名错误。
- Python
- Java
def create_workspace(name: str, description: str = "") -> str:
"""创建工作空间,返回 workspace_id。"""
url = f"{BASE_URL}/api/app-api/sip/platform/v2/workspace/create"
payload = {
"name": name,
"description": description,
"auth_scope": 0,
}
resp = requests.post(url, json=payload, headers=_headers(), timeout=30)
data = _check(resp, "创建工作空间")
return data["result"]["workspace_id"]
# 调用示例(名称含时间戳,避免重名)
workspace_name = f"费用报销_{datetime.now().strftime('%Y%m%d_%H%M%S')}"
workspace_id = create_workspace(name=workspace_name, description="费用报销单据自动化处理空间")
public static String createWorkspace(String name, String description) throws IOException {
String url = BASE_URL + "/api/app-api/sip/platform/v2/workspace/create";
JsonObject payload = new JsonObject();
payload.addProperty("name", name);
payload.addProperty("description", description);
payload.addProperty("auth_scope", 0);
Request req = new Request.Builder().url(url).headers(authHeaders())
.post(RequestBody.create(GSON.toJson(payload), JSON_TYPE)).build();
try (Response resp = HTTP.newCall(req).execute()) {
JsonObject data = checkResponse(resp.body().string(), "创建工作空间");
return data.getAsJsonObject("result").get("workspace_id").getAsString();
}
}
// 调用示例
String workspaceName = "费用报销_"
+ new SimpleDateFormat("yyyyMMdd_HHmmss").format(new Date());
String workspaceId = createWorkspace(workspaceName, "费用报销单据自动化处理空间");
步骤 2:配置文件类别
步骤 2:配置文件类别
create_category 通过 multipart 表单一次性完成类别创建、样本上传和字段配置。对于需要表格字段的类别(如酒店水单),在创建后再调用 batch_add_category_fields 追加。- Python
- Java
def create_category(workspace_id, name, sample_file_path, fields, category_prompt="") -> str:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/category/create"
with open(sample_file_path, "rb") as f:
form_data = [
("workspace_id", (None, workspace_id)),
("name", (None, name)),
("extract_model", (None, "Acgpt")),
("category_prompt", (None, category_prompt)),
("fields", (None, json.dumps(fields, ensure_ascii=False))),
("sample_files", (os.path.basename(sample_file_path), f, _mime(sample_file_path))),
]
resp = requests.post(url, files=form_data, headers=_headers(), timeout=60)
return _check(resp, f"创建文件类别[{name}]")["result"]["category_id"]
def batch_add_category_fields(workspace_id, category_id, fields, table_id=None) -> list:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/category/fields/batch_add"
payload = {"workspace_id": workspace_id, "category_id": category_id, "fields": fields}
if table_id:
payload["table_id"] = str(table_id)
resp = requests.post(url, json=payload, headers=_headers(), timeout=30)
return _check(resp, "批量追加字段")["result"]
# 调用示例:酒店水单(含表格字段)
hotel_id = create_category(workspace_id, "酒店水单",
os.path.join(SAMPLE_DIR, "sample_hotel_receipt.png"),
[{"name": "入住日期"}, {"name": "离店日期"}, {"name": "总金额"}])
batch_add_category_fields(workspace_id, hotel_id, table_id=-1, fields=[
{"name": "日期"}, {"name": "费用类型"}, {"name": "金额"}, {"name": "备注"}
])
public static String createCategory(String workspaceId, String name,
String sampleFilePath, List<Map<String, String>> fields,
String categoryPrompt) throws IOException {
File sampleFile = new File(sampleFilePath);
MultipartBody body = new MultipartBody.Builder().setType(MultipartBody.FORM)
.addFormDataPart("workspace_id", workspaceId)
.addFormDataPart("name", name)
.addFormDataPart("extract_model", "Acgpt")
.addFormDataPart("category_prompt", categoryPrompt)
.addFormDataPart("fields", GSON.toJson(fields))
.addFormDataPart("sample_files", sampleFile.getName(),
RequestBody.create(sampleFile, MediaType.get(mimeType(sampleFile.getName()))))
.build();
Request req = new Request.Builder().url(BASE_URL + "/api/app-api/sip/platform/v2/category/create")
.headers(authHeaders()).post(body).build();
try (Response resp = HTTP.newCall(req).execute()) {
return checkResponse(resp.body().string(), "创建文件类别")
.getAsJsonObject("result").get("category_id").getAsString();
}
}
// 调用示例:酒店水单(含表格字段)
String hotelId = createCategory(workspaceId, "酒店水单",
SAMPLE_DIR + "/sample_hotel_receipt.png",
Arrays.asList(field("入住日期"), field("离店日期"), field("总金额")), "");
batchAddCategoryFields(workspaceId, hotelId, "-1",
List.of("日期", "费用类型", "金额", "备注"));
步骤 3:上传待处理文件
步骤 3:上传待处理文件
DocFlow 提供两种上传方式:方式二:同步上传(直接返回抽取结果,跳过步骤 4)
- 异步上传
file/upload:立即返回batch_number,需配合步骤 4 轮询file/fetch获取结果,适合批量并行上传 - 同步上传
file/upload/sync:等待处理完成后直接返回抽取结果(结构与file/fetch一致),无需轮询,适合对接简单或文件量少的场景
- Python
- Java
def upload_file(workspace_id: str, file_path: str) -> str:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/file/upload"
with open(file_path, "rb") as f:
resp = requests.post(url,
params={"workspace_id": workspace_id},
files={"file": (os.path.basename(file_path), f, _mime(file_path))},
headers=_headers(), timeout=60)
return _check(resp, "上传文件")["result"]["batch_number"]
# 调用示例
batch_numbers = [upload_file(workspace_id, p) for p in [
os.path.join(SAMPLE_DIR, "sample_expense_form.xls"),
os.path.join(SAMPLE_DIR, "sample_hotel_receipt.png"),
os.path.join(SAMPLE_DIR, "sample_payment_record.pdf"),
]]
public static String uploadFile(String workspaceId, String filePath) throws IOException {
File file = new File(filePath);
HttpUrl url = HttpUrl.parse(BASE_URL + "/api/app-api/sip/platform/v2/file/upload")
.newBuilder().addQueryParameter("workspace_id", workspaceId).build();
MultipartBody body = new MultipartBody.Builder().setType(MultipartBody.FORM)
.addFormDataPart("file", file.getName(),
RequestBody.create(file, MediaType.get(mimeType(file.getName()))))
.build();
Request req = new Request.Builder().url(url).headers(authHeaders()).post(body).build();
try (Response resp = HTTP.newCall(req).execute()) {
return checkResponse(resp.body().string(), "上传文件")
.getAsJsonObject("result").get("batch_number").getAsString();
}
}
// 调用示例
String[] files = {
SAMPLE_DIR + "/sample_expense_form.xls",
SAMPLE_DIR + "/sample_hotel_receipt.png",
SAMPLE_DIR + "/sample_payment_record.pdf"
};
List<String> batchNumbers = new ArrayList<>();
for (String path : files) batchNumbers.add(uploadFile(workspaceId, path));
- Python
- Java
def upload_file_sync(workspace_id: str, file_path: str) -> dict:
"""同步上传:直接返回抽取结果,无需轮询。"""
url = f"{BASE_URL}/api/app-api/sip/platform/v2/file/upload/sync"
with open(file_path, "rb") as f:
resp = requests.post(url,
params={"workspace_id": workspace_id},
files={"file": (os.path.basename(file_path), f, _mime(file_path))},
headers=_headers(), timeout=300)
data = _check(resp, "同步上传文件")
return data["result"]["files"][0] # 返回结构与 file/fetch 一致
# 调用示例:上传即得到抽取结果,可直接用于审核
raw_results = [upload_file_sync(workspace_id, p) for p in [
os.path.join(SAMPLE_DIR, "sample_expense_form.xls"),
os.path.join(SAMPLE_DIR, "sample_hotel_receipt.png"),
os.path.join(SAMPLE_DIR, "sample_payment_record.pdf"),
]]
public static JsonObject uploadFileSync(String workspaceId, String filePath) throws IOException {
File file = new File(filePath);
HttpUrl url = HttpUrl.parse(BASE_URL + "/api/app-api/sip/platform/v2/file/upload/sync")
.newBuilder().addQueryParameter("workspace_id", workspaceId).build();
MultipartBody body = new MultipartBody.Builder().setType(MultipartBody.FORM)
.addFormDataPart("file", file.getName(),
RequestBody.create(file, MediaType.get(mimeType(file.getName()))))
.build();
Request req = new Request.Builder().url(url).headers(authHeaders()).post(body).build();
try (Response resp = HTTP.newCall(req).execute()) {
return checkResponse(resp.body().string(), "同步上传文件")
.getAsJsonObject("result").getAsJsonArray("files")
.get(0).getAsJsonObject(); // 返回结构与 file/fetch 一致
}
}
// 调用示例
List<JsonObject> rawResults = new ArrayList<>();
for (String path : new String[]{
SAMPLE_DIR + "/sample_expense_form.xls",
SAMPLE_DIR + "/sample_hotel_receipt.png",
SAMPLE_DIR + "/sample_payment_record.pdf"}) {
rawResults.add(uploadFileSync(workspaceId, path));
}

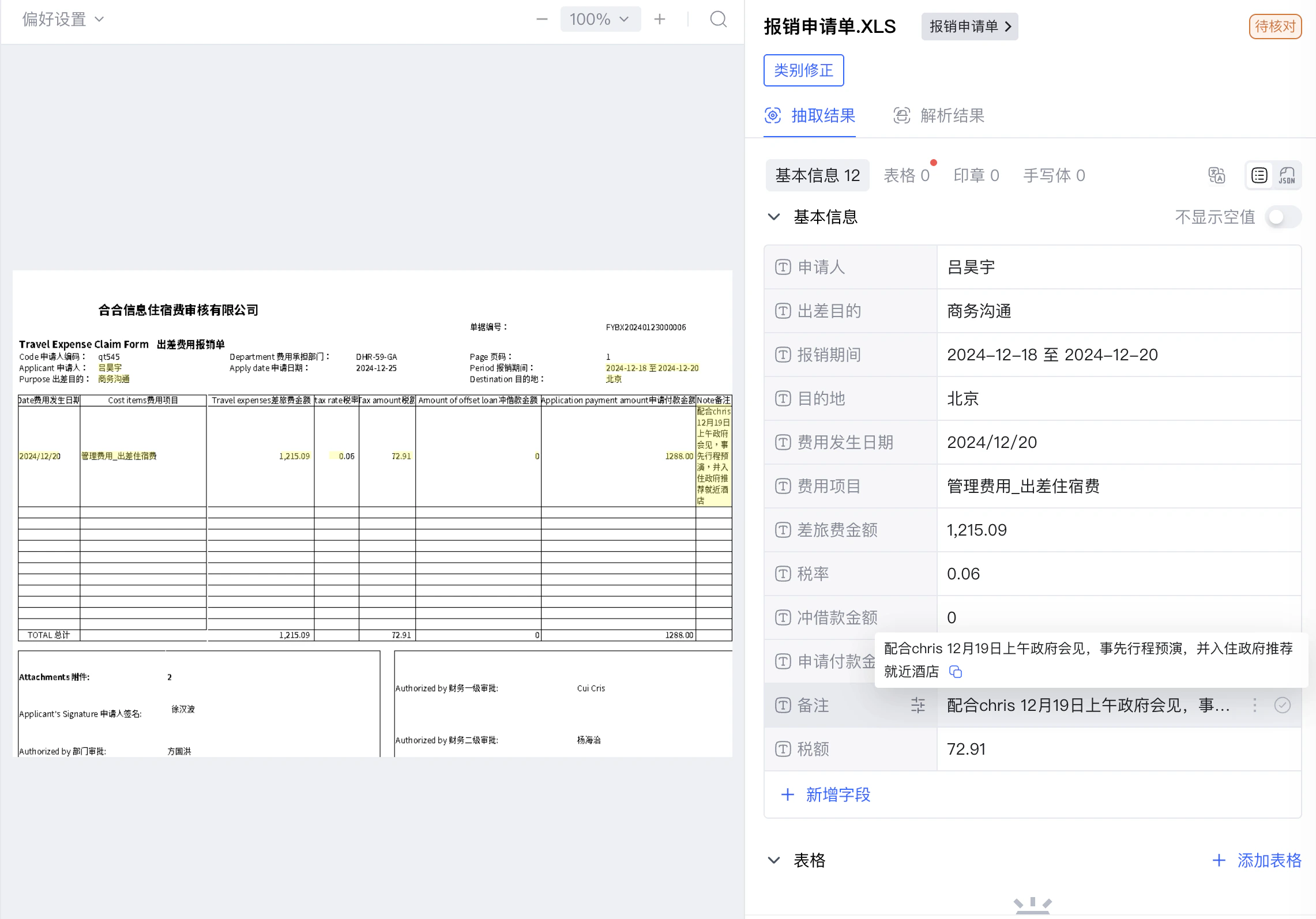

步骤 4:获取抽取结果(使用同步上传时可跳过)
步骤 4:获取抽取结果(使用同步上传时可跳过)
若步骤 3 使用了同步上传
file/upload/sync,则已直接获得抽取结果,可跳过本步骤。wait_for_result 封装了轮询逻辑,每隔 3 秒查询一次 file/fetch,直到 recognition_status 变为 1(成功)。返回的文件对象中包含 task_id,后续审核步骤需要用到。- Python
- Java
def wait_for_result(workspace_id, batch_number, timeout=120, interval=3) -> dict:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/file/fetch"
deadline = time.time() + timeout
while time.time() < deadline:
resp = requests.get(url,
params={"workspace_id": workspace_id, "batch_number": batch_number},
headers=_headers(), timeout=30)
files = _check(resp, "获取处理结果").get("result", {}).get("files", [])
if files:
status = files[0].get("recognition_status")
if status == 1:
return files[0] # 含 task_id,供后续审核使用
elif status == 2:
raise RuntimeError(f"文件处理失败: {files[0].get('failure_causes')}")
time.sleep(interval)
raise TimeoutError("等待超时")
# 调用示例(收集 task_id 用于后续审核)
raw_results = []
for batch_number in batch_numbers:
result = wait_for_result(workspace_id, batch_number)
raw_results.append(result)
public static JsonObject waitForResult(String workspaceId, String batchNumber,
int timeoutSec, int intervalSec) throws IOException, InterruptedException {
HttpUrl url = HttpUrl.parse(BASE_URL + "/api/app-api/sip/platform/v2/file/fetch")
.newBuilder().addQueryParameter("workspace_id", workspaceId)
.addQueryParameter("batch_number", batchNumber).build();
long deadline = System.currentTimeMillis() + (long) timeoutSec * 1000;
while (System.currentTimeMillis() < deadline) {
Request req = new Request.Builder().url(url).headers(authHeaders()).get().build();
try (Response resp = HTTP.newCall(req).execute()) {
JsonObject data = checkResponse(resp.body().string(), "获取处理结果");
JsonArray files = data.getAsJsonObject("result").getAsJsonArray("files");
if (files != null && files.size() > 0) {
JsonObject file = files.get(0).getAsJsonObject();
int status = file.get("recognition_status").getAsInt();
if (status == 1) return file; // 含 task_id
if (status == 2) throw new RuntimeException("文件处理失败");
}
}
Thread.sleep((long) intervalSec * 1000);
}
throw new RuntimeException("等待超时");
}
// 调用示例
List<JsonObject> rawResults = new ArrayList<>();
for (String bn : batchNumbers) {
rawResults.add(waitForResult(workspaceId, bn, 120, 3));
}
步骤 5:配置审核规则库
步骤 5:配置审核规则库
规则库采用三层结构:规则库 → 规则组 → 规则。
create_rule 的 category_ids 参数指定规则适用的分类,使用步骤 2 中获得的 category_id。- Python
- Java
# 创建规则库
repo_id = create_rule_repo(workspace_id, "费用报销审核规则库")
# 规则组1:报销申请单合规性检查
group1_id = create_rule_group(workspace_id, repo_id, "报销申请单合规性检查")
create_rule(workspace_id, repo_id, group1_id,
"必填字段完整性校验",
"\"申请人\"、\"费用发生日期\"、\"费用项目\"、\"申请付款金额\"均不为空,"
"任一字段为空则审核不通过",
[baoxiao_id], 10) # category_ids 传入步骤2获得的 category_id
# 规则组3:跨文档交叉审核(关联多个分类)
group3_id = create_rule_group(workspace_id, repo_id, "跨文档交叉审核")
create_rule(workspace_id, repo_id, group3_id,
"跨文档金额匹配",
"报销申请单差旅费金额 = 酒店水单总金额 = 支付记录交易金额,允许±0.1元误差",
[baoxiao_id, hotel_id, payment_id], 10) # 关联三个分类
// 创建规则库
String repoId = createRuleRepo(workspaceId, "费用报销审核规则库");
// 规则组1:报销申请单合规性检查
String group1Id = createRuleGroup(workspaceId, repoId, "报销申请单合规性检查");
createRule(workspaceId, repoId, group1Id,
"必填字段完整性校验",
"\"申请人\"、\"费用发生日期\"、\"费用项目\"、\"申请付款金额\"均不为空," +
"任一字段为空则审核不通过",
Arrays.asList(baoxiaoId), 10); // category_ids 传入步骤2获得的 category_id
// 规则组3:跨文档交叉审核(关联多个分类)
String group3Id = createRuleGroup(workspaceId, repoId, "跨文档交叉审核");
createRule(workspaceId, repoId, group3Id,
"跨文档金额匹配",
"报销申请单差旅费金额 = 酒店水单总金额 = 支付记录交易金额,允许±0.1元误差",
Arrays.asList(baoxiaoId, hotelId, paymentId), 10); // 关联三个分类
步骤 6:提交审核任务
步骤 6:提交审核任务
从步骤 4 的抽取结果中提取
task_id,传入审核接口。审核任务是异步执行的,提交后需要轮询结果。- Python
- Java
def submit_review_task(workspace_id, name, repo_id, extract_task_ids) -> str:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/review/task/submit"
payload = {
"workspace_id": workspace_id,
"name": name,
"repo_id": repo_id,
"extract_task_ids": extract_task_ids,
}
resp = requests.post(url, json=payload, headers=_headers(), timeout=30)
return _check(resp, "提交审核任务")["result"]["task_id"]
# 调用示例(从抽取结果中收集 task_id)
extract_task_ids = [r.get("task_id") for r in raw_results if r.get("task_id")]
review_task_id = submit_review_task(workspace_id, "费用报销审核", repo_id, extract_task_ids)
public static String submitReviewTask(String workspaceId, String name,
String repoId, List<String> extractTaskIds) throws IOException {
JsonObject payload = new JsonObject();
payload.addProperty("workspace_id", workspaceId);
payload.addProperty("name", name);
payload.addProperty("repo_id", repoId);
JsonArray ids = new JsonArray();
extractTaskIds.forEach(ids::add);
payload.add("extract_task_ids", ids);
Request req = new Request.Builder()
.url(BASE_URL + "/api/app-api/sip/platform/v2/review/task/submit")
.headers(authHeaders()).post(RequestBody.create(GSON.toJson(payload), JSON_TYPE)).build();
try (Response resp = HTTP.newCall(req).execute()) {
return checkResponse(resp.body().string(), "提交审核任务")
.getAsJsonObject("result").get("task_id").getAsString();
}
}
// 调用示例
List<String> extractTaskIds = new ArrayList<>();
for (JsonObject r : rawResults) {
if (r.has("task_id")) extractTaskIds.add(r.get("task_id").getAsString());
}
String reviewTaskId = submitReviewTask(workspaceId, "费用报销审核", repoId, extractTaskIds);
步骤 7:获取审核结果
步骤 7:获取审核结果
wait_for_review 轮询 review/task/result 接口,直到任务状态变为终态(1=审核通过、2=审核失败、4=审核不通过、7=识别失败)。- Python
- Java
def wait_for_review(workspace_id, task_id, timeout=300, interval=5) -> dict:
url = f"{BASE_URL}/api/app-api/sip/platform/v2/review/task/result"
payload = {"workspace_id": workspace_id, "task_id": task_id}
deadline = time.time() + timeout
while time.time() < deadline:
resp = requests.post(url, json=payload, headers=_headers(), timeout=30)
result = _check(resp, "获取审核结果").get("result", {})
if result.get("status") in (1, 2, 4, 7):
return result
time.sleep(interval)
raise TimeoutError("等待审核结果超时")
# 调用示例
review_result = wait_for_review(workspace_id, review_task_id)
# review_result["status"] → 任务整体状态
# review_result["statistics"] → 通过/不通过规则数统计
# review_result["groups"] → 各规则组的详细审核结果
public static JsonObject waitForReview(String workspaceId, String taskId,
int timeoutSec, int intervalSec) throws IOException, InterruptedException {
JsonObject payload = new JsonObject();
payload.addProperty("workspace_id", workspaceId);
payload.addProperty("task_id", taskId);
long deadline = System.currentTimeMillis() + (long) timeoutSec * 1000;
while (System.currentTimeMillis() < deadline) {
Request req = new Request.Builder()
.url(BASE_URL + "/api/app-api/sip/platform/v2/review/task/result")
.headers(authHeaders()).post(RequestBody.create(GSON.toJson(payload), JSON_TYPE)).build();
try (Response resp = HTTP.newCall(req).execute()) {
JsonObject result = checkResponse(resp.body().string(), "获取审核结果")
.getAsJsonObject("result");
int status = result.get("status").getAsInt();
if (status == 1 || status == 2 || status == 4 || status == 7) return result;
}
Thread.sleep((long) intervalSec * 1000);
}
throw new RuntimeException("等待审核结果超时");
}
// 调用示例
JsonObject reviewResult = waitForReview(workspaceId, reviewTaskId, 300, 5);
抽取结果示例

审核结果示例

07 完整示例代码下载
完整可运行代码(含 Python、Java 两个版本)已内置在文档仓库的examples/ 目录下:
examples/
├── python/
│ ├── expense_reimbursement.py # Python 完整示例
│ ├── requirements.txt
│ └── README.md
├── java/
│ ├── src/main/java/com/docflow/ExpenseReimbursement.java
│ ├── pom.xml
│ └── README.md
└── sample_files/
└── expense_reimbursement/
├── sample_expense_form.xls
├── sample_hotel_receipt.png
├── sample_payment_record.pdf
└── sample_rule_repo.xlsx
Python 示例
查看 Python 完整示例代码
Java 示例
查看 Java 完整示例代码
08 运行示例
- Python
- Java
环境要求:Python 3.8+1. 安装依赖2. 填写配置打开 3. 运行
cd examples/python
pip install -r requirements.txt
expense_reimbursement.py,填写文件顶部的配置项:APP_ID = "your-app-id" # x-ti-app-id
SECRET_CODE = "your-secret-code" # x-ti-secret-code
python expense_reimbursement.py
环境要求:JDK 11+,Maven 3.6+1. 填写配置打开 2. 编译并运行
src/main/java/com/docflow/ExpenseReimbursement.java,填写文件顶部的配置项:private static final String APP_ID = "your-app-id";
private static final String SECRET_CODE = "your-secret-code";
cd examples/java
mvn clean package -q
java -jar target/expense-reimbursement-1.0.0.jar
运行成功后,可登录 DocFlow Web 页面,在对应工作空间下直观查看每份文件的分类、字段抽取结果和智能审核结果,便于与代码输出对照验证。
预期控制台输出
成功运行后,控制台将输出如下内容(workspace_id、category_id 等 ID 因运行环境不同而变化):============================================================
DocFlow 费用报销场景示例
============================================================
[步骤1] 工作空间创建成功 workspace_id=<workspace_id>
[步骤2] 文件类别创建成功 name=报销申请单 category_id=<category_id>
[步骤2] 文件类别创建成功 name=酒店水单 category_id=<category_id>
追加字段成功 name=日期 field_id=<field_id>
追加字段成功 name=费用类型 field_id=<field_id>
追加字段成功 name=金额 field_id=<field_id>
追加字段成功 name=备注 field_id=<field_id>
[步骤2] 文件类别创建成功 name=支付记录 category_id=<category_id>
配置完成 workspace_id=<workspace_id>
报销申请单: category_id=<category_id>
酒店水单: category_id=<category_id>
支付记录: category_id=<category_id>
开始上传待处理文件...
[步骤3] 文件上传成功 name=sample_expense_form.xls batch_number=<batch_number>
[步骤3] 文件上传成功 name=sample_hotel_receipt.png batch_number=<batch_number>
[步骤3] 文件上传成功 name=sample_payment_record.pdf batch_number=<batch_number>
开始获取处理结果...
[步骤4] 等待处理结果(batch_number=<batch_number>)..... 完成
============================================================
文件名 : sample_expense_form.xls
分类结果 : 报销申请单
── 普通字段 ──────────────────────────
申请人 : 吕昊宇
出差目的 : 商务沟通
报销期间 : 2024-12-18 至 2024-12-20
目的地 : 北京
费用发生日期 : 2024/12/20
费用项目 : 管理费用_出差住宿费
差旅费金额 : 1,215.09
税率 : 0.06
税额 : 72.91
冲借款金额 : 0
申请付款金额 : 1288.00
[步骤4] 等待处理结果(batch_number=<batch_number>)... 完成
============================================================
文件名 : sample_hotel_receipt.png
分类结果 : 酒店水单
── 普通字段 ──────────────────────────
入住日期 : 2024-12-18
离店日期 : 2024-12-20
总金额 : 1,288.00
── 表格行数据 ────────────────────────
第1行: 日期=2024-12-18 | 费用类型=房费*Room Charge | 金额=644.00 | 备注=*Room Charge
第2行: 日期=2024-12-19 | 费用类型=房费*Room Charge | 金额=644.00 | 备注=*Room Charge
[步骤4] 等待处理结果(batch_number=<batch_number>).... 完成
============================================================
文件名 : sample_payment_record.pdf
分类结果 : 支付记录
── 普通字段 ──────────────────────────
交易流水号 : 910220250309124124624054
交易授权码 : 929632
付款卡种 : 信用卡
付款方户名 : 吕昊宇
付款银行 : 宁波银行
交易时间 : 2024-12-18 12:41:24
交易金额 : 1288.00
交易描述 : 财付通-房费
交易账号/支付方式 : 信用卡
原始抽取结果已保存至: .../examples/python/results.json
开始配置审核规则库...
[步骤5] 规则库创建成功 name=费用报销审核规则库 repo_id=<repo_id>
规则组创建成功 name=报销申请单合规性检查 group_id=<group_id>
规则创建成功 name=行报销金额校验 rule_id=<rule_id>
规则创建成功 name=报销总金额校验 rule_id=<rule_id>
规则创建成功 name=报销期间与费用日期匹配 rule_id=<rule_id>
规则创建成功 name=必填字段完整性校验 rule_id=<rule_id>
规则组创建成功 name=差旅费用政策匹配审核 group_id=<group_id>
规则创建成功 name=城市差标匹配 rule_id=<rule_id>
规则创建成功 name=酒店明细合计金额校验 rule_id=<rule_id>
规则组创建成功 name=跨文档交叉审核 group_id=<group_id>
规则创建成功 name=跨文档金额匹配 rule_id=<rule_id>
规则创建成功 name=付款人身份与申请人一致性 rule_id=<rule_id>
[步骤6] 审核任务提交成功 task_id=<task_id>
[步骤7] 等待审核结果(task_id=<task_id>)................... 完成
============================================================
审核任务状态 : 审核不通过
规则通过数 : 5
规则不通过数 : 3
── 规则组:跨文档交叉审核 ───────────────────
✗ [中风险] 付款人身份与申请人一致性: 审核不通过
依据: 支付记录付款方户名"吕昊宇"与报销申请单申请人签名"徐汉波"不一致。
✓ [高风险] 跨文档金额匹配: 审核通过
依据: 报销申请单差旅费金额 1288.00 = 酒店水单总金额 1288.00 = 支付记录交易金额 1288.00,在允许误差范围内。
── 规则组:差旅费用政策匹配审核 ───────────────────
✓ [中风险] 酒店明细合计金额校验: 审核通过
依据: 明细行金额 644.00 + 644.00 = 1288.00,与总金额一致。
✓ [中风险] 城市差标匹配: 审核通过
依据: 酒店位于北京(一线城市),住宿单价 644.00 元/晚未超过 800 元/晚的标准。
── 规则组:报销申请单合规性检查 ───────────────────
✓ [高风险] 必填字段完整性校验: 审核通过
依据: 申请人、费用发生日期、费用项目、申请付款金额均已填写。
✗ [中风险] 报销期间与费用日期匹配: 审核不通过
依据: 费用发生日期 2024/12/20 在报销期间范围内,但申请人签名与申请人字段不一致。
✓ [高风险] 报销总金额校验: 审核通过
依据: 申请付款总金额 1288.00 等于行申请付款金额合计 1288.00。
✗ [高风险] 行报销金额校验: 审核不通过
依据: 行申请付款金额 1288.00 大于行差旅费金额(含税)1215.09 + 税额 72.91 - 冲借款金额 0 = 1288.00,等于上限,审核不通过。
============================================================
示例运行完成
============================================================
09 结果说明
抽取结果
处理完成后,每份文件将返回分类结果和字段抽取结果。字段抽取结果位于data.fields[],每个字段包含 key、value 及坐标 position(可用于原文高亮回显)。
以下为三份样本文件的实际接口返回(来自 file/fetch,省略了部分 position 坐标):
sample_expense_form.xls
sample_expense_form.xls
{
"id": "2029124607672344576",
"name": "sample_expense_form.xls",
"format": "xls",
"category": "报销申请单",
"recognition_status": 1,
"duration_ms": 5316,
"data": {
"fields": [
{
"key": "目的地",
"value": "无锡",
"position": [{ "page": 0, "vertices": [902, 158, 925, 158, 925, 170, 902, 170] }]
},
{ "key": "费用发生日期", "value": "2025/4/22" },
{ "key": "费用项目", "value": "管理费用_出差住宿费(含洗衣费)" },
{ "key": "申请付款金额", "value": "531.00" },
{ "key": "申请人", "value": "合合信息" },
{ "key": "出差目的", "value": "商务沟通" },
{ "key": "差旅费金额", "value": "500.94" },
{ "key": "税率", "value": "6%" },
{ "key": "冲借款金额", "value": "" },
{ "key": "备注", "value": "配合chris 4月22日上午政府会见,事先行程预演,并入住政府推荐就近酒店" },
{ "key": "税额", "value": "30.06" },
{ "key": "报销期间", "value": "2025年04月" }
],
"stamps": [],
"handwritings": []
}
}
{
"id": "2029521862627704832",
"name": "sample_hotel_receipt.png",
"format": "png",
"category": "酒店水单",
"recognition_status": 1,
"duration_ms": 6185,
"data": {
"fields": [
{
"key": "总金额",
"value": "1,288.00",
"position": [{ "page": 0, "vertices": [1258, 838, 1337, 838, 1337, 860, 1258, 860] }]
},
{ "key": "入住日期", "value": "2024-12-18" },
{ "key": "离店日期", "value": "2024-12-20" }
],
"items": [
[
{ "key": "日期", "value": "2024-12-18", "position": [{ "page": 0, "vertices": [259, 714, 370, 714, 370, 732, 259, 732] }] },
{ "key": "费用类型", "value": "房费*Room Charge" },
{ "key": "金额", "value": "644.00" },
{ "key": "备注", "value": "*Room Charge" }
],
[
{ "key": "日期", "value": "2024-12-19" },
{ "key": "费用类型", "value": "房费*Room Charge" },
{ "key": "金额", "value": "644.00" },
{ "key": "备注", "value": "*Room Charge" }
]
],
"stamps": [
{
"page": 0,
"text": "北京中■马哥华罗大酒店有限 911101007916219X 发票专用章",
"type": "其他",
"color": "红色",
"shape": "椭圆章"
}
],
"handwritings": []
}
}
sample_payment_record.pdf
sample_payment_record.pdf
{
"id": "2029124614827827202",
"name": "sample_payment_record.pdf",
"format": "pdf",
"category": "支付记录",
"recognition_status": 1,
"duration_ms": 7203,
"data": {
"fields": [
{
"key": "交易描述",
"value": "财付通-叶婆婆钵钵鸡",
"position": [{ "page": 0, "vertices": [741, 1288, 1157, 1288, 1157, 1330, 741, 1330] }]
},
{ "key": "交易流水号", "value": "910220250309124124624054" },
{ "key": "收款方户名", "value": "" },
{ "key": "交易时间", "value": "2025-03-09 12:41:24" },
{ "key": "收款方账户", "value": "" },
{ "key": "交易金额", "value": "240.00" },
{ "key": "付款银行", "value": "宁波银行" },
{ "key": "币种", "value": "" },
{ "key": "交易账号/支付方式", "value": "信用卡" },
{ "key": "交易授权码", "value": "929632" },
{ "key": "付款卡种", "value": "信用卡" },
{ "key": "付款方户名", "value": "吕昊宇" },
{ "key": "备注", "value": "" },
{ "key": "收款方银行", "value": "" }
],
"stamps": [
{
"page": 0,
"text": "宁波银行股份有限公司 电子回单专用章",
"type": "其他",
"color": "红色",
"shape": "椭圆章"
}
],
"handwritings": []
}
}
审核结果
审核完成后,可从review/task/result 接口获取以下信息:
status:任务整体状态(1=审核通过,4=审核不通过,2=审核失败)statistics:规则通过数、不通过数汇总groups[].review_tasks[]:每条规则的详细审核结果,包含:review_result:该规则的审核结论reasoning:AI 给出的审核依据说明anchors:依据在原文中的坐标位置(可用于高亮回显)
{
"task_id": "31415926",
"task_name": "费用报销审核",
"status": 4,
"statistics": { "pass_count": 5, "failure_count": 3, "error_count": 0 },
"groups": [
{
"group_name": "报销申请单合规性检查",
"review_tasks": [
{
"rule_name": "必填字段完整性校验",
"risk_level": 10,
"review_result": 1,
"reasoning": "申请人、费用发生日期、费用项目、申请付款金额均已填写,审核通过。"
},
{
"rule_name": "行报销金额校验",
"risk_level": 10,
"review_result": 4,
"reasoning": "行申请付款金额 1288.00 大于行差旅费金额(含税)1215.09 + 税额 72.91 = 1288.00,等于上限,审核不通过。"
},
{
"rule_name": "报销总金额校验",
"risk_level": 10,
"review_result": 1,
"reasoning": "申请付款总金额 1288.00 等于行申请付款金额合计 1288.00,审核通过。"
},
{
"rule_name": "报销期间与费用日期匹配",
"risk_level": 20,
"review_result": 4,
"reasoning": "费用发生日期 2024/12/20 在报销期间 2024-12-18 至 2024-12-20 范围内,但申请人签名与申请人字段不一致,审核不通过。"
}
]
},
{
"group_name": "差旅费用政策匹配审核",
"review_tasks": [
{
"rule_name": "城市差标匹配",
"risk_level": 20,
"review_result": 1,
"reasoning": "酒店位于北京(一线城市),住宿单价 644.00 元/晚未超过 800 元/晚的标准,审核通过。"
},
{
"rule_name": "酒店明细合计金额校验",
"risk_level": 20,
"review_result": 1,
"reasoning": "明细行金额 644.00 + 644.00 = 1288.00,与总金额 1288.00 一致,审核通过。"
}
]
},
{
"group_name": "跨文档交叉审核",
"review_tasks": [
{
"rule_name": "跨文档金额匹配",
"risk_level": 10,
"review_result": 1,
"reasoning": "报销申请单差旅费金额 1288.00 = 酒店水单总金额 1288.00 = 支付记录交易金额 1288.00,在允许误差范围内,审核通过。"
},
{
"rule_name": "付款人身份与申请人一致性",
"risk_level": 20,
"review_result": 4,
"reasoning": "支付记录付款方户名"吕昊宇"与报销申请单申请人签名"徐汉波"不一致,审核不通过。"
}
]
}
]
}
